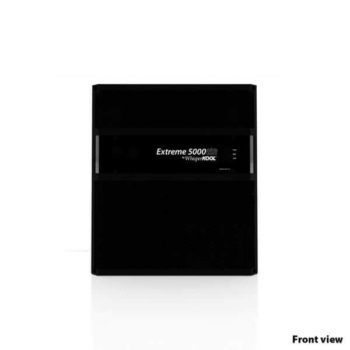

Extreme 5000tiR – Self Contained

This product is intended for through-the-wall installations. It is an “upgrade” to the Extreme ti because it uses the KDT Plus remote controller and thermostat. The duct plenums for the evaporator and condenser can be purchased separately. The controller can be mounted outside the cellar, allowing you to monitor your cellar temperature without needing to enter. The controller can be mounted up to 50 feet away from the Extreme unit.

NOTE: If this unit will be installed through an exterior wall, you will need to purchase an exterior housing to protect the unit. If this unit will be installed through an interior wall, the hot air exhaust may be redirected to another location using the condenser ducting plenum kit.

Key Features:

  • Variable-speed fans
  • Reliable starting and running performance, even under the most extreme outdoor conditions
  • Fits neatly between wall studs for quick and simple installation
  • Cooling unit can be located up to 25 ducted feet from the cellar
  • Remote digital display with 50-ft. cable
  • Quiet operation technology delivers sound levels as low as 51 db
  • 55°F temperature differential
  • Standard and 24V thermostat options available

Specifications:

Cellar Size Approx. 1250 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit)
 BTU/h (85°F condenser air
intake temperature)
3794
Dimensions   28″L x 14.25″W x 15.75″H
 Refrigerant  R-134a
 HP 1/3
Refrigeration Tons: 0.34
Voltage Reading 115V (20-amp dedicated circuit required); 230V (subject to availability)
Weight (lbs) 115 lbs
Amps 9 (running amps)
Duct Size 8″ supply, 8″ return (evaporator and condenser)
Drain Line 3/8″ ID clear plastic tubing
Installation Can be installed up to 25 duct feet away from cellar
Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable)
Temp. Delta Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
